·Fixed Pattern order codes
·Withdrawable order codes
·Accessories & Spare parts order codes

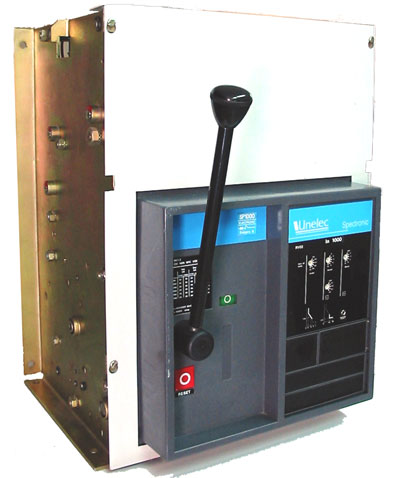

Fixed SPN series
|
3 Poles
SPN 400 3P 3D
775544
SPN 630 3P 3D
775543
SPN 800 3P 3D
776301
SPN 1000 3P 3D
776313
SPN 1250 3P 3D
776323
SPN 1600 3P 3D
776333
SPN 2000 3P 3D
776343
SPN 2500 3P 3D
776353
4 Poles
SPN 800 4P 3D 776302
SPN 1000 4P 3D 776314
SPN 1250 4P 3D 776324
SPN 1600 4P 3D 776334
SPN 2000 4P 3D 776344
SPN 2500 4P 3D 776354
|
|
All ACBs equiped with MTS or MTU or MTL electronic relay with long time over load
protection (LT-LTD) ,short time and instantaneous short circuit protection
(ST-I) and ground fault protection (GF) with fault alarm and faulat
history(optional)Package contains 1unit ACB +
instruction manual |
Top |
Spectronic SPN
|
Fixed SP series
(discontinued)
|
SP 400 3P 3D 755574
SP 630 3P 3D
755573
SP 800 3P 3D
756303
SP 1000 3P 3D
756313
SP 1250 3P 3D
756323
SP 1600 3P 3D
756333
SP 2000 3P 3D
756343
SP 2500 3P 3D
756353
SP
SP 800 4P 3D 756304
SP 1000 4P 3D 756314
SP 1250 4P 3D 756324
SP 1600 4P 3D 756334
SP 2000 4P 3D 756344
SP 2500 4P 3D 756354
|
|
All ACBs equiped with RV+ electronic relay with long time over load
protection (LT-LTD) ,short time and instantaneous short circuit protection
(ST-I) and ground fault protection (GF)Package contains 1unit ACB +
instruction manual |
Top |
Spectronic SP
|

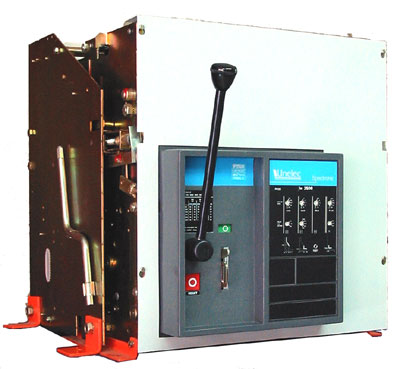

Withdrawable SPN
series
|
3 Poles
SPNW 400 3P 3D 775574
SPNW 630 3P 3D
775573
SPNW 800 3P 3D
776303
SPNW1000 3P 3D
776311
SPNW 1250 3P 3D
776321
SPNW 1600 3P 3D
776331
SPNW 2000 3P 3D
776341
SPNW 2500
3P 3D
776351
4 PolesP
SPNW 800 4P 3D
776304
SPNW 1000 4P 3D
776312
SPNW 1250 4P 3D
776322
SPNW 1600 4P 3D
776332
SPNW 2000 4P 3D 776342
SPNW 2500 4P 3D
776352
Cradle 3P frame 1+ front terminals
756100
Cradle 3P frame 2+ front terminals
756102
Cradle 4P frame 1+ front terminals
756101
Cradle 4P frame 2+ front terminals
756103 |
|
All ACBs have front connection cradle and equiped with MTS or MTU or MTL electronic relay with long time over load
protection (LT-LTD) ,short time and instantaneous short circuit protection
(ST-I) and ground fault protection (GF) with fault alarm and faulat
history(optional)Package contains 1unit ACB + 1cradle with
insulation parts + instruction manual |
Top |
|
Withdrawable
SP series (discontinued)
|
SPW 400 3P 3D 755544
SPW 630 3P 3D
755543
SPW 800 3P 3D
756301
SPW 1000 3P 3D
756311
SPW 1250 3P 3D
756321
SPW 1600 3P 3D
756331
SPW 2000 3P 3D
756341
SPW 2500
3P 3D
756351
SP
SPW 800 4P 3D
756302
SPW 1000 4P 3D
756312
SPW 1250 4P 3D
756322
SPW 1600 4P 3D
756332
SPW 2000 4P 3D 756342
SPW 2500 4P 3D
756352
Cradle 3P frame 1+ front terminals
756100
Cradle 3P frame 2+ front terminals
756102
Cradle 4P frame 1+ front terminals
756101
Cradle 4P frame 2+ front terminals
756103 |
|
All ACBs equiped with RV+ electronic relay with long time over load
protection (LT-LTD) ,shot time and instantaneous short circuit protection (ST-I)
and ground fault protection (GF)Package contains 1unit ACB + 1cradle with
insulation parts + instruction manual |
Top |
|
Accessories & Spare parts
|
All voltages mentioned in 50Hz
Motor control unit 220 V AC 756233
Motor control unit 220 V DC 756215Motor
control unit 110 V AC 756201Motor
control unit 110 V DC 756213 |
Shunt trip 220 V AC/DC 770016Shunt trip 110 V
AC/DC 770013
- Auxiliary contact (AS) 756062
- Fault contact (BA)
752817
UV release 220 V AC/DC 770026UV
release 110 V AC/DC 770023
MTL protection unit
757767MTS protection unit
757766MTU protection unit
757765RV23 protection relay 755365
RV+ protection relay 755372RV and RW test unit
RWV00
*
|
Top
Notes: MTL, MTS and MTU available only on SPN
series. For
more detailed information please refer to
 |

| |
|
